CMA Blue LED Transilluminator（ CMA001）
Click：2015 Release date：2019-1-23 Author：mioweb Source：Original

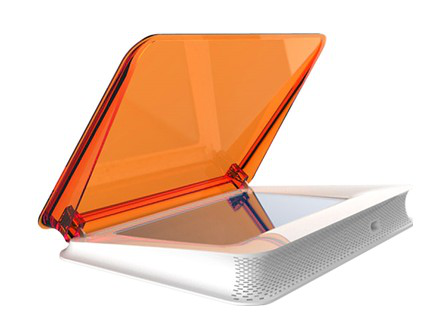

CMA Blue LED Transilluminator
Catalog number: CMA001
Description
CMA Blue LED Transilluminator is an extraordinary blue light LED transilluminator for the detection of nucleic acids or protein under non-UV conditions. The wavelength of the special blue LED lights is 470 nm (fig 1), hence no damage to your nucleic acids or protein. Since UV is not used, there is no need for any special personal eye or skin protection. The blue LED lights are arranged under the viewing area (200 × 120 mm). An amber filter, on hinges, is lowered into position once your gel is mounted. The stained gel is now ready for observation. This instrument has a specially designed ergonomic 4° angle, so users can easily sit on a chair to see the experiment results. CMA Blue LED Transilluminator is designed to inspect the gel after electrophoresis and stained with the MxSafe Plus. CMA Blue LED Transilluminator is not suitable .|
|
Specifications
|
Unit dimensions (W × L × H) |
295 × 215 × 42 mm (11.6 × 8.4 × 1.6 inch) |
|
Gel viewing dimensions (W × L × H) |
200 × 120 mm (7.8 × 4.7 inch) |
|
Weight (g) |
1280 |
|
Input voltage |
100-240Vac, 50 / 60 Hz |
|
Input current |
1.4A |
|
LED source |
Built-in blue light LED module |
|
LED life (hours) |
>30,000 |
|
Emission maxima (nm) |
470 |
|
Store temperature |
25°C |
|
Operating temperature |
Ambient to 40°C |
|
Auto shut-off (minute) |
5 |
|
Filter type : |
Amber filter (Mxsafe Plus ) |
